Technical Specifications

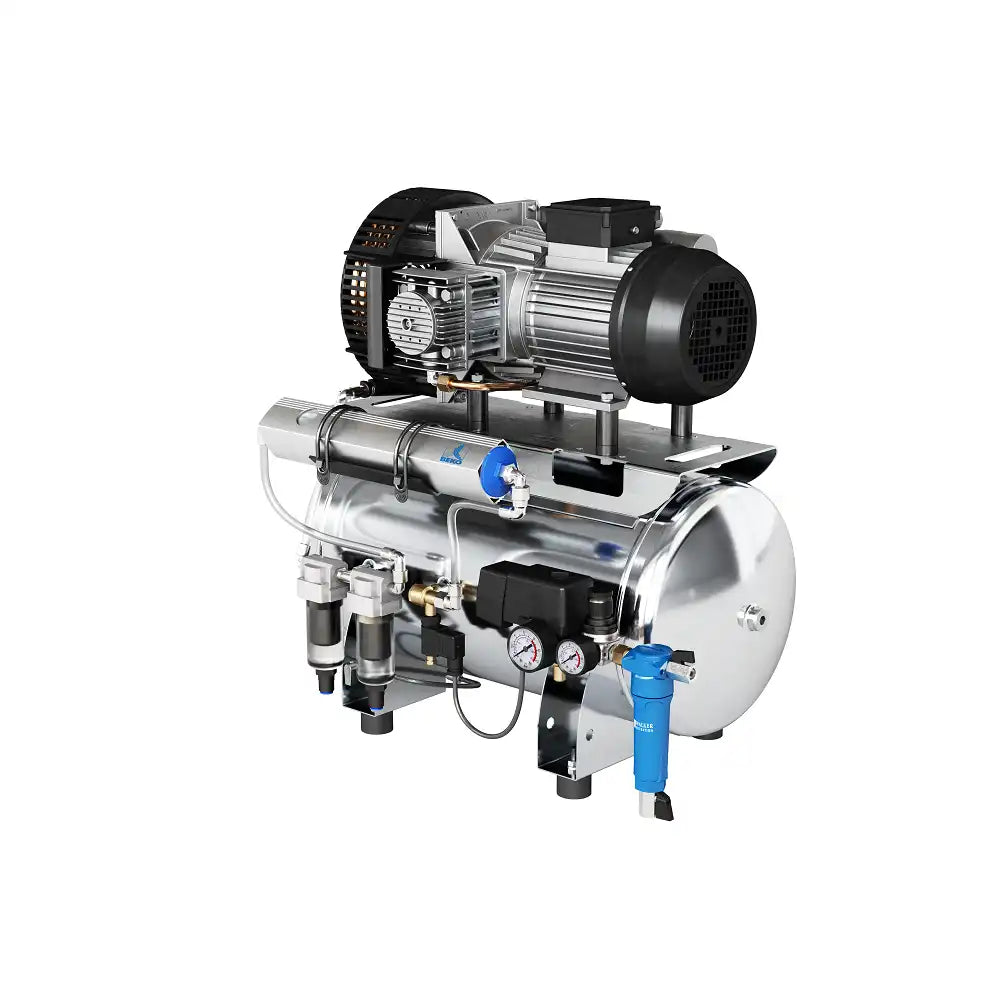

Clinic 3/40 DRY HS
Code: 812108001
|
Number of Chairs |
2 |
|
Condensate Treatment |
Membrane dryer | dew point -40°C |
|
Particle Treatment |
0.1 µm | Antibacterial filter |
|
Air Purity Class (ISO 8573-1) |
3-2-0 |
|
Voltage (V) |
230.00 |
|
Frequency (Hz) |
50.00 |
|
Rated Power (kW) |
1.80 |
|
Rated Power (HP) |
2.20 |
|
Rotation Speed (rpm) |
1,400.00 |
|
Absorption (A) |
8.50 |
|
Number of Cylinders |
2 |
|
Air Intake (L/min) |
240.00 |
|
Air Flow (L/min @5 bar) |
135.00 |
|
Air Flow (L/min @8 bar) |
110.00 |
|
Maximum Pressure (bar) |
10.00 |
|
Noise Level (3.00m @ 5.00 bar (dB(A)) |
67.00 |
|
Duty Cycle |
S1 100% |
|
Tank Coating |
AISI 304 Stainless Steel |
|
Tank Capacity (lt) |
40.00 |
|
First Maintenance (hours) |
3000 |
|
Hour Counter |
Included |
|
Automatic Tank Drain Valve |
Optional |
Product Dimensions
|
Length (mm) |
Width (mm) |
Height (mm) |
Weight (Kg) |
|
650.00 |
460.00 |
660.00 |
42.00 |
Single Piece Packaging Dimensions
|
Length (mm) |
Width (mm) |
Height (mm) |
Weight (Kg) |
|
570.00 |
680.00 |
950.00 |
47.00 |
Full pallet packaging dimensions
|
Dimensions (mm) |
Weight (Kg) |
Pieces |
|
1140x680x1900 |
172.00 |
4 |
