Technical Specifications

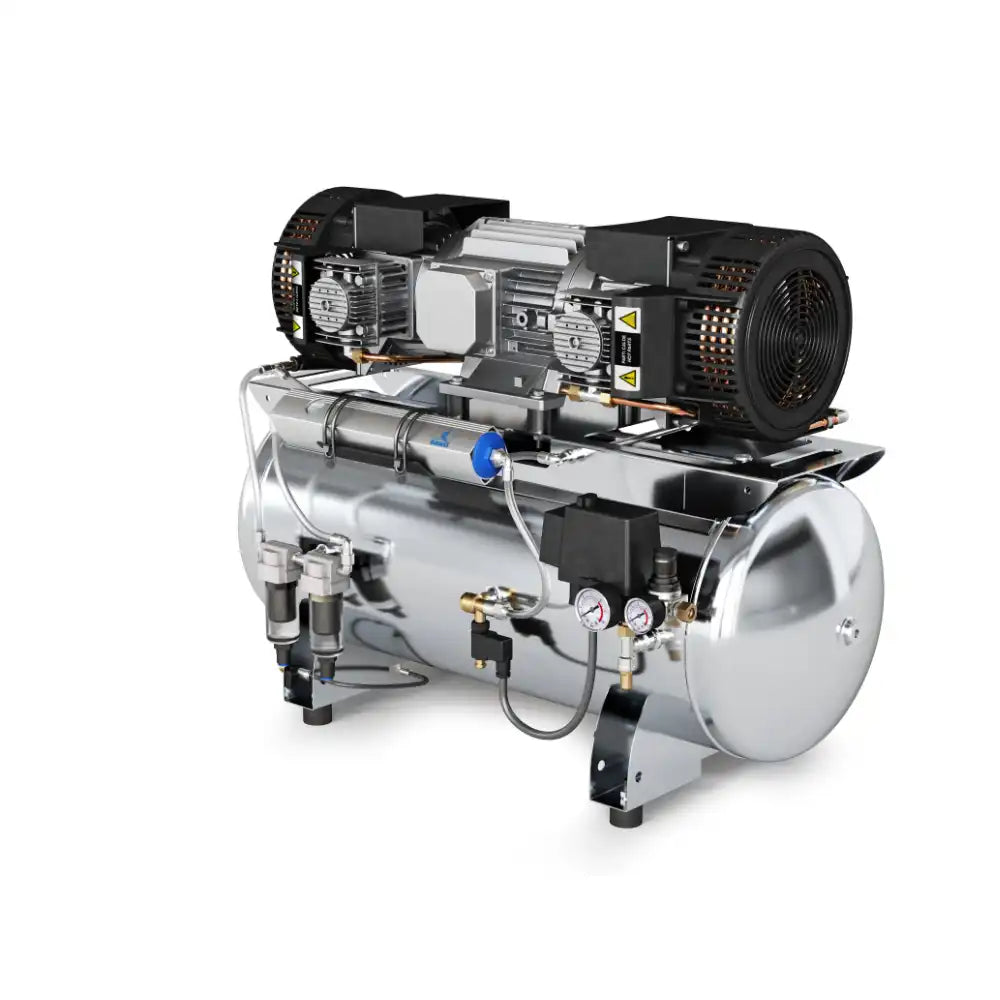

Clinic DRY 6/90 H
Code: 814513006
|
Number of Chairs |
4+1 |
|
Condensate Treatment |
Membrane Dryer | dew point -40°C |
|
Particle Treatment |
0.3 µm |
|
Air Purity Class (ISO 8573-1) |
3-2-0 |
|
Voltage (V) |
230.00 |
|
Frequency (Hz) |
50.00 |
|
Rated Power (kW) |
2.80 |
|
Rated Power (HP) |
3.75 |
|
Rotation Speed (rpm) |
1,400.00 |
|
Absorption (A) |
14 |
|
Number of Cylinders |
4 |
|
Air Intake (L/min) |
430 |
|
Air Flow (L/min @5 bar) |
235 |
|
Air Flow (L/min @8 bar) |
180 |
|
Maximum Pressure (bar) |
10.00 |
|
Noise Level (3.00m @ 5.00 bar (dB(A)) |
72 |
|
Duty Cycle |
S1 100% |
|
Tank Coating |
AISI 304 Stainless Steel |
|
Tank Capacity (lt) |
90.00 |
|
First Maintenance (hours) |
3000 |
|
Hour Meter |
Included |
|
Automatic Tank Drain Valve |
Optional |
Product Dimensions
|
Length (mm) |
Width (mm) |
Height (mm) |
Weight (Kg) |
|
990.00 |
490.00 |
710.00 |
86.00 |
Dimensions of the single part packaging
|
Length (mm) |
Width (mm) |
Height (mm) |
Weight (Kg) |
|
1100.00 |
600.00 |
900.00 |
105.00 |
Dimensions of the full pallet packaging
|
Dimensions (mm) |
Weight (Kg) |
Pieces |
|
- |
- |
- |
